Description

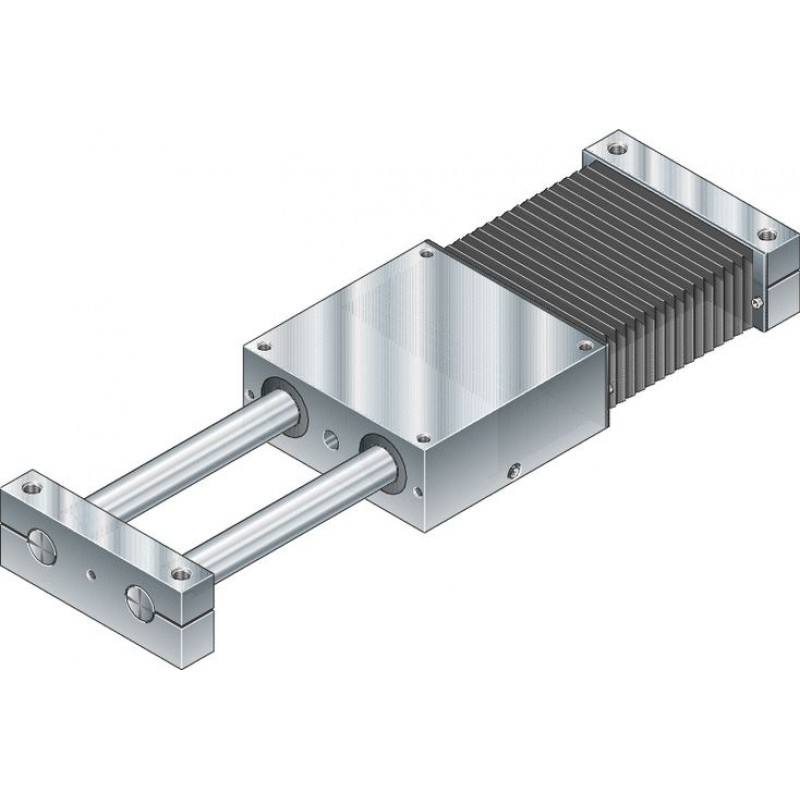

- Closed-type format for self-supporting installation
- Particularly suitable for environments with a heavy contamination load (closed bellows)
Product description
Linear motion slides are an inexpensive solution for a wide variety of applications. Linear motion slide guides consist of linear bushings that ensure quiet travel and a long service life. Linear motion slides with a closed design are suitable for self-supporting uses. Here, the guide is connected to the mounting base at both ends via shaft support blocks.
Structural design
- Carriage (aluminum alloy)
- Four super linear bushings, size 8: Standard linear bushings
- Four seals
- Two cross ties (aluminum alloy)
- Two precision steel shafts, tolerance h6
- With air compensation hole for bellows mounting
Technical data
Maximum values for each size
| Size | SGO-065 | SGO-085 | SGO-100 | SGO-130 | SGO-160 | SGO-180 | SGO-230 | SGO-280 | |
| C | N | 1040 | 2700 | 3310 | 6560 | 12830 | 15600 | 26770 | 39180 |
| Mt | Nm | 16 | 56 | 89 | 236 | 564 | 748 | 1633 | 2977 |
| ML | Nm | 17 | 62 | 94 | 249 | 596 | 787 | 1860 | 3271 |
| Mx max | Nm | 8 | 18 | 29 | 76 | 192 | 268 | 531 | 983 |
| My max | Nm | 8 | 19 | 30 | 80 | 203 | 282 | 605 | 1080 |
| Mz max | Nm | 8 | 19 | 30 | 80 | 203 | 282 | 605 | 1080 |
| Fy max | N | 480 | 840 | 1060 | 2100 | 4360 | 5580 | 8700 | 12940 |
| Fz max | N | 480 | 840 | 1060 | 2100 | 4360 | 5580 | 8700 | 12940 |
| Lmax | mm | 700 | 1000 | 1500 | 2500 | 3000 | 4000 | ||
| amax 1) | m/s² | 150 | |||||||
| vmax 2) | m/s | 3 | |||||||
| 1) | For linear motion slides without drive SGO/SOO, unlike the SGK/SOK, there is no ball screw assembly as a limiting factor for acceleration. |
| 2) | Speeds of up to 5 m/s possible. Service life is limited by the heightened wear of the plastic parts. |
| Maximum values depends on the selected configuration. |
Legend
| Symbol | Description | Unit |
| C | Dynamic load capacity, linear guide | N |
| Mt | Dynamic torsional moment load capacity | Nm |
| ML | Dynamic longitudinal moment load capacity | Nm |
| Mx max | Maximum admissible torsional moment around the x-axis | Nm |
| My max | Maximum admissible torsional moment around the y-axis | Nm |
| Mz max | Maximum admissible torsional moment around the z-axis | Nm |
| Fy max | Maximum dynamic load in y-direction | N |
| Fz max | Maximum dynamic load in z-direction | N |
| Lmax | Maximum length | mm |
| amax | Maximum acceleration travel | m/s2 |
| vmax | Maximum permissible speed | m/s |
Safety Instructions
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
Ordering codes
Order overview
| Size | Part number | Short product name | CAD data | Buy |
| SGO-065 | R026090000 | SGO-065-NN-1 | ||
| SGO-085 | R026000000 | SGO-085-NN-1 | ||
| SGO-100 | R026010000 | SGO-100-NN-1 | ||
| SGO-130 | R026020000 | SGO-130-NN-1 | ||
| SGO-160 | R026030000 | SGO-160-NN-1 | ||
| SGO-180 | R026040000 | SGO-180-NN-1 | ||
| SGO-230 | R026050000 | SGO-230-NN-1 | ||
| SGO-280 | R026060000 | SGO-280-NN-1 |
Explanation of short product name
| Linear Motion Slides SGO example | SGO-130-NN-1 | |
| System | S | LinearMotionSlides |
| Design type | G | Closed-type |
| Drive | O | Without |
| Size | 130 | 065/085/100/130/160/180/230/280 |
| Version | NN | Normal version |
| Generation | 1 | Product generation 1 |
Downloads
 | Linear Motion Slides (PDF) Catalog | R310EN3001 | 2012-06-01 | English | PDF | 19MB Product Groups: Linear Motion Slides |
| Linear Motion Slides SGO/SOO Manual | R320103073 | 2003-08-01 | English, French, German, Italian | PDF | 578k Product Groups: Linear Motion Slides |
| Declaration of Incorporation for single axis Linear Motion Systems Certificate | R320103141 | 2020-06-01 | All languages | PDF | 409k Product Groups: Linear axes and electromechanical cylinders |
| Safety Instructions for Linear Motion Systems Manual | R320103152_en | 2015-01-01 | English | PDF | 593k Product Groups: Linear axes and electromechanical cylinders |
