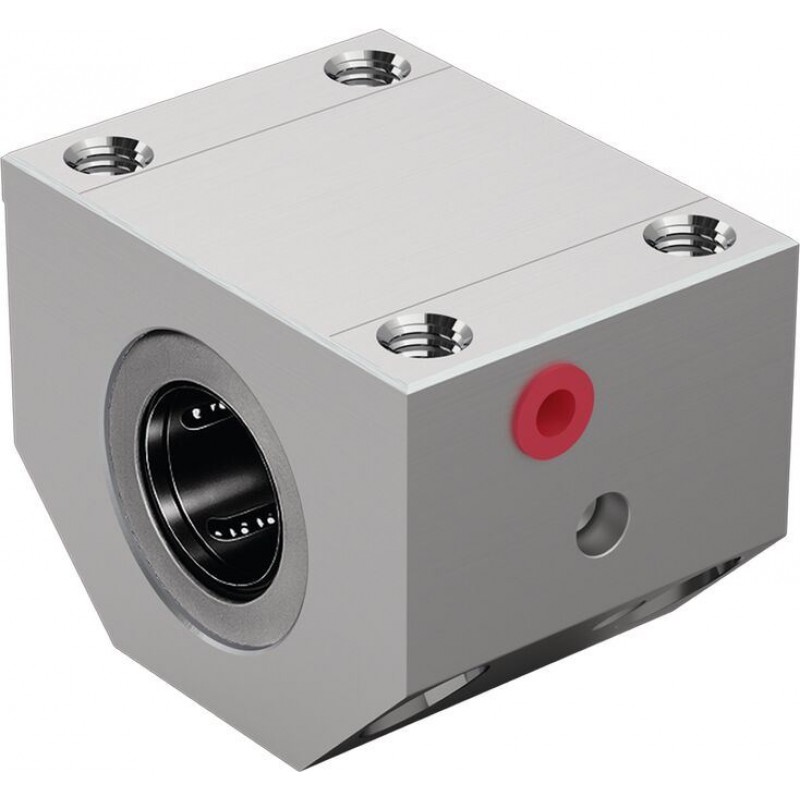

Linear Sets with Super Linear Bushings H, closed-type, R1701 LSAH-H-..-DD
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Precision housing (aluminum)
- Super Linear Bushing H
- Compensate for misalignments of up to 30 ft
- Integrated wiper seals
- Secured with bolt
Features
- Relubricatable
Technical data
General technical data
| Ø d | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| amax | m/s² | 150 | |||||
| vmax | m/s | 5 | |||||
| m | kg | 0.29 | 0.58 | 0.88 | 1.63 | 2.7 | 5.2 |
| FR 1) | N | 2.5 | 3 | 4 | 5 | 6 | 7 |
| Breakaway force | N | 5 | 7 | 9 | 12 | 15 | 18 |
| Shaft radial clearance h6 2) | µm | + 43 + 11 | + 50 + 12 | + 56 + 14 | |||
| Operating conditions | |||||||
| Permissible ambient temperature (min ... max) | -20 °C ... +80 °C | ||||||
| 1) | Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| 2) | Clamped (fastened). |
Load capacities and load moments
| Ød | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| C 1) | N | 2520 | 4430 | 6300 | 9680 | 16000 | 23500 |
| C0 1) | N | 1880 | 3360 | 5230 | 7600 | 12200 | 18700 |
| 1) | The load ratings apply for the main direction of loading. |
| The load ratings are based on a total travel of 100, 00 m. When based on 50 000 m, the values in the table need to be multiplied by 1.26. |
Legend
| Symbol | Description | Unit |
| Ød | Shaft diameters | mm |
| amax | Maximum acceleration travel | m/s2 |
| C | Dynamic load capacity | N |
| C0 | Static load capacity | N |
| FR | Friction force | N |
| m | Mass | kg |
| vmax | Maximum permissible speed | m/s |
See "Technical data – Load direction factors" and the diagrams/characteristic curves section for exact values for the 4 main directions of loading.
Effect of load direction on load rating
| a) | Closed |
| b) | Open |
Main direction of loading
Load direction factors
The load ratings C and C0 apply for the load direction ρ = 0°. For all other load directions, the load ratings must be multiplied by the factors fr (dynamic load rating C) or fρ0 (static load rating C0).
Load direction factor Super H
| Shaft | Load direction factor (dynamic load capacity) | |||||
| Ø d (mm) | ⇩ | ⇒⇐ | ⇑ | ⇩ | ⇒⇐ | ⇑ |
| 20 - 25 | 1 | 0,80 | 0,98 | 1 | 0,80 | 0,67 |
| 30 - 60 | 1 | 0,70 | 0,91 | 1 | 0,70 | 0,62 |
| Load direction factor (static load capacity) | ||||||
| 20 - 25 | 1 | 0,70 | 0,87 | 1 | 0,70 | 0,67 |
| 30 - 60 | 1 | 0,62 | 0,80 | 1 | 0,62 | 0,61 |
 |  | |||||
Reduced load capacity with short stroke
In case of short stroke, the service life of the shaft is less than that of the super Linear Bushing. The load ratings C specified in the tables must therefore be multiplied by the factor f.s .
| 1) | fs = factor |
| 2) | s = movement path |
Reduced load capacity with high load
The load rating is reduced under high load F. The dynamic load rating must be multiplied by the load factor f.F .
| 1) | fF = load factor |
Definition of dynamic load ratings
Diagrams/characteristic curves

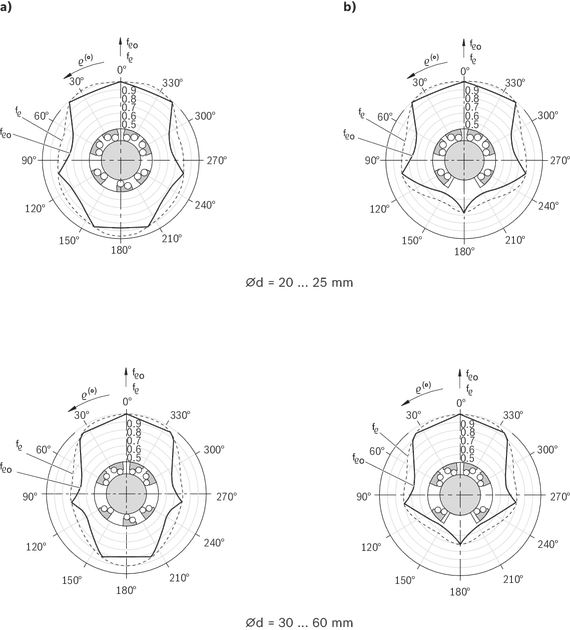

Load direction factors
| a) | Closed |
| b) | Open |
Super Linear Bushings can be installed in any location. Choose a location that ensures that the main direction of loading is always ρ = 0°.

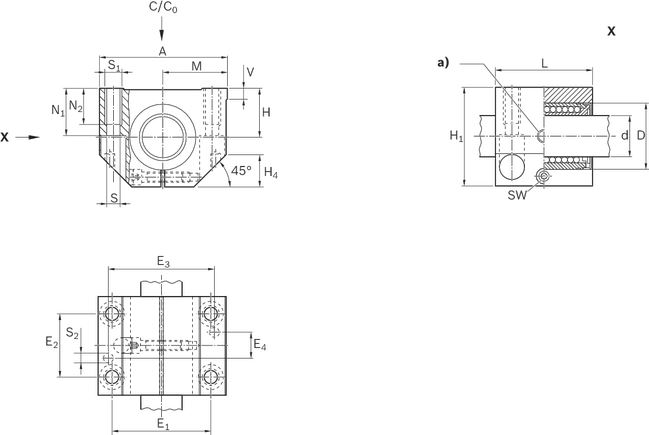

Dimensions
| a) | Lubricating hole sealed with plastic cap |
| M8x1 (Ø d 20 – 50 mm) | |
| M10x1 (Ø d = 60 mm) |
Dimensions
| Ød | mm | 20 | 25 | 30 | 40 | 50 | 60 |
| D | mm | 32 | 40 | 47 | 62 | 75 | 90 |
| A | mm | 60 | 78 | 87 | 108 | 132 | 164 |
| E1 | 45 mm ±0.15 | 60 mm ±0.15 | 68 mm ±0.15 | 86 mm ±0.15 | 108 mm ±0.2 | 132 mm ±0.2 | |
| E2 | 32 mm ±0.15 | 40 mm ±0.15 | 45 mm ±0.15 | 58 mm ±0.15 | 50 mm ±0.2 | 65 mm ±0.2 | |
| E3 | mm | 50 | 64 | 72 | 90 | 108 | 132 |
| E4 | mm | 15 | 17 | 20 | 25 | 85 | 108 |
| H | mm | 25 | 30 | 35 | 45 | 50 | 60 |
| Tolerance for H 1) | µm | + 8 - 16 | |||||
| H1 | mm | 50 | 60 | 70 | 90 | 105 | 125 |
| H4 | mm | 16 | 20 | 22 | 28 | 37 | 45 |
| L | mm | 46 | 59 | 69 | 81 | 101 | 126 |
| M | 30 mm ±0.01 | 39 mm ±0.01 | 43.5 mm ±0.01 | 54 mm ±0.01 | 66 mm ±0.01 | 82 mm ±0.01 | |
| N1 | mm | 24 | 29 | 34 | 44 | 49 | 59 |
| N2 | mm | 18 | 22 | 26 | 34 | 42 | |
| S | mm | 6.6 | 8.4 | 10.5 | 13.5 | 17.5 | |
| S1 | M8 | M10 | M12 | M16 | M20 | ||
| S2 | mm | 5 | 6 | 8 | 10 | 12 | |
| SW | mm | 4 | 5 | 6 | 8 | 10 | |
| V | mm | 5 | 6.5 | 8 | 10 | 12 | 13 |
| 1) | Clamped (fastened) in relation to Ø d. |
| a) | Lubricating hole sealed with plastic cap |
| M8x1 (Ø d 20 – 50 mm) | |
| M10x1 (Ø d = 60 mm) |
Project planning information
Life expectancy calculation
Mounting
General mounting instructions
Commissioning

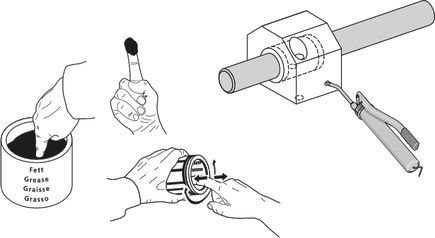

Linear Sets with Super H Linear Bushings do not come with initial lubrication. Grease the Linear Bushings before use. Service life data is based on initial lubrication and relubricated Linear Bushings.
Maintenance
Lubrication
Certification
Directives and standards
Safety Instructions
