Артикул: RX8696

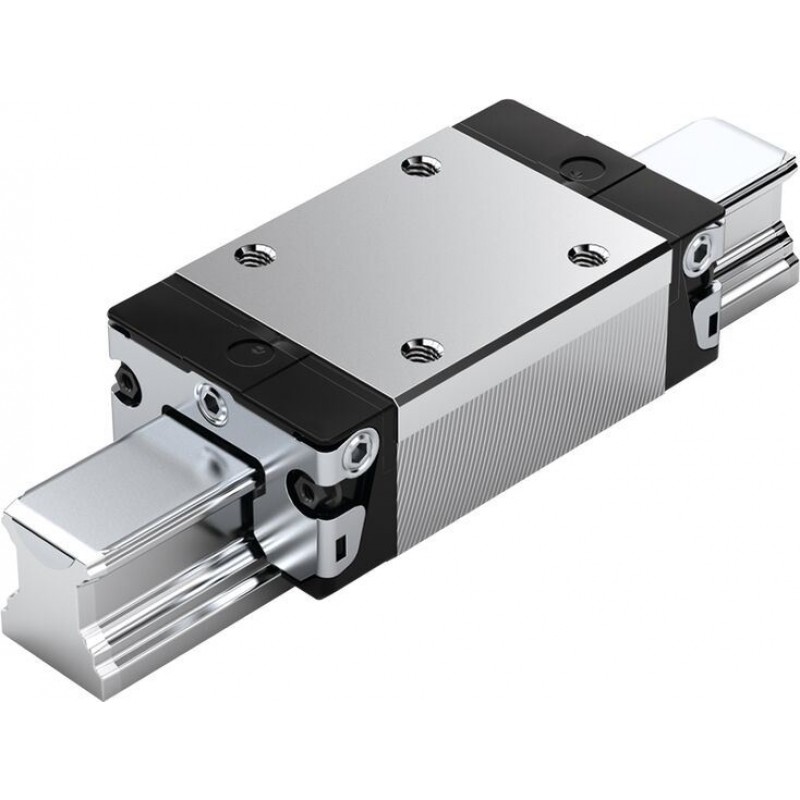

BSHP Ball Runner Block SNS, standard, steel, without ball chain R1622 … 2.
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- Area of application: For restricted space in transverse direction
- High torque capacity
- The same high load ratings in all four main directions of loading
- Long-term lubrication is possible over several years
- Limitless interchangeability as all Ball Rail Systems can be combined at will with all Ball Runner Block versions within each accuracy class.
Features
- Different preload classes
- Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
- Attachments on the Ball Runner Block can be mounted from above
- Integrated all-around sealing
- Minimum quantity lubrication system with integrated reservoir for oil lubrication
- End-face fastening thread for all attachments
- Can be used on all SNS/SNO Ball Guide Rails
- Excellent dynamic characteristics
- Ball Runner Block pre-lubricated at the factory.
Product description
Product description of Ball Rail Systems
Production description – Ball Runner Block
Materials
Selection of a linear guide acc. to DIN 637
Ball chain and seals
Design and version
Friction
Due to the Rexroth design with four rows of balls, 2-point contact is available in all loading directions. This reduces the friction to a minimum.
Other ball rail systems with two or four rows of balls with 4-point contact have multiple friction: due to the differential slip with lateral loading and in case of comparable prestressing without the load, the gothic raceway profile causes higher friction (depending on the raceway curvature and the load, up to five times the friction coefficient). This high friction leads correspondingly to greater heat.
Seals
Seals are use to prevent dirt, chips and coolants, etc. from working their way into the inside of he Ball Runner Block, thereby preventing reductions to its service life. For further information, see "Selection criteria/seals".
Standard seal (SS)
Universal seals are fitted as standard in Rexroth Ball Runner Blocks. They have a uniform sealing effect for Ball Guide Rails with and without cover strips. Low friction and a good sealing effect have both been taken into account in the design. For applications where effective sealing is required.
Low-friction seal (LS)
For special requirements with regard to ease of movement.
Double-lip seal (DS)
For increased exposure to media
Front seal
For applications in environments with fine dirt or metal particles, as well as coolants or cutting fluids.
Interchangeable during servicing.
Front seals are available as accessories for mounting by the customer.
FKM seal
For applications in extreme environments with fine dirt or metal particles, as well as heavy use of coolants or cutting fluids.
Interchangeable during servicing.
FKM front seals are available as accessories for mounting by the customer.
Cover plate wiper
For use in environments with coarse dirt or chips.
Cover plate wiper are available as accessories for mounting by the customer.
Technical data
load errorDiagrams/characteristic curves

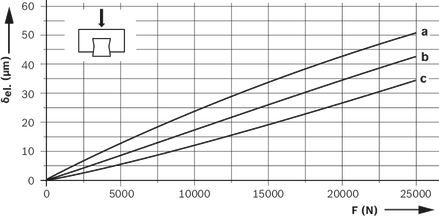

Rigidity of ball rail system with preloading
Due to the large number of variants only one type is listed. Further rigidity diagrams are available on request.
Example
Ball runner blocks SNS
Slimline, normal, standard height
Size 35:
a) Ball runner block R1622 31. 20 for preload C1
Resist NR: Ball runner block R2011 313 30 for preload C1
b) Ball runner block R1622 32. 20 for preload C2
c) Ball runner block R1622 33. 20 for preload C3
Preload
C1/C2/C3 = in accordance with table for preload force Fpr
Resist NR material numbers for the corresponding preload only
Key
δel Elastic deformation (μm)
F = Load (N)
Dimensions
load errorProject planning information
Load on bearing for calculating the service life
Loads and service life
Mounting
load errorMaintenance
load errorCertification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog BSHP Ball Rail Systems Catalog | R999000485 | 2020-10-01 | English | PDF | 15MB Product Groups: Ball Rail Systems only available as PDF |
