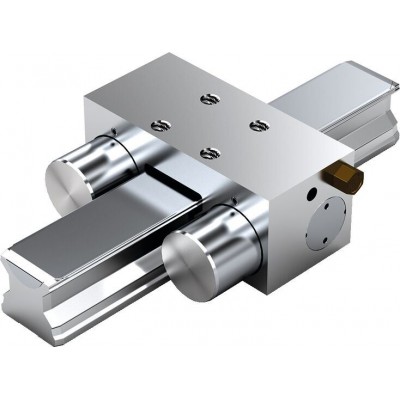

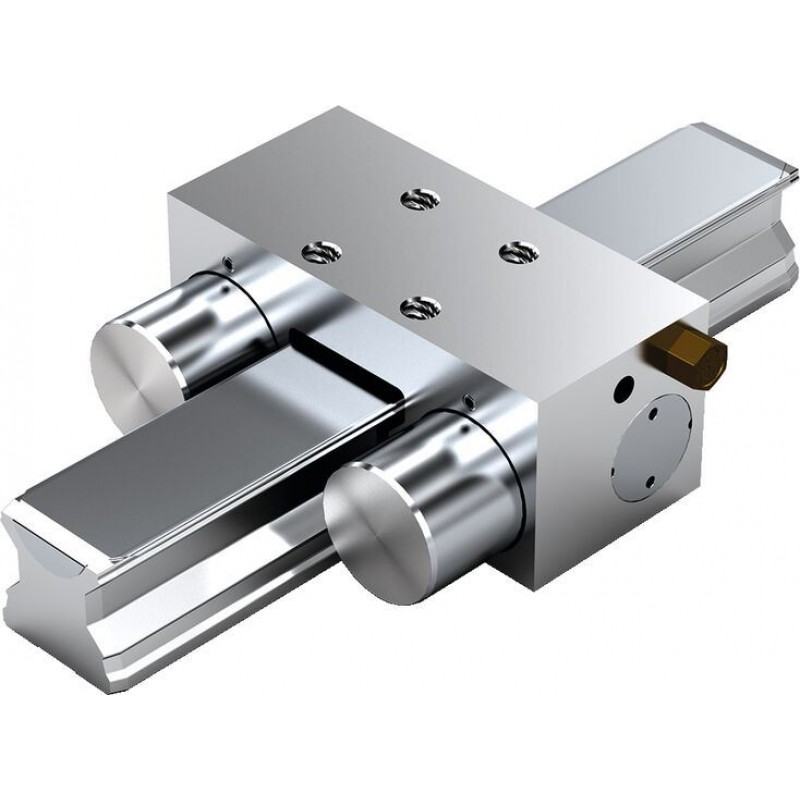

Description
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Easy mounting
- Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
Features
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Exact positioning, high dynamics, powerful drive and long service life through the use of high-precision linear screw drives
- Higher holding force due to the air-plus port
- Can be used on all SNS roller guide rails
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
Product description
Functional principle
Air pressure: 0 bar
Clamps with spring force
In the event of a pressure drop, the MKS clamps via a dual acting gate valve gear mechanism, each with one spring assembly (spring energy accumulator).
An integrated quick-exhaust valve provides for short reaction times.
Air pressure: 5.5 - 8 bar
Decompression with air pressure
The clamping profiles are held apart by the compressed air.
- Free movement is possible
Technical data
General technical data
| Size | 25 | 35 | 45 | 55 | 65 | |
| Spring energy holding force with standard air port 1) | N | 750 | 1250 | 1450 | ||
| Spring energy holding force with air-plus port 1) 2) | N | 1500 | 3250 | 3300 | ||
| Air consumption (normal liter) standard air port | dm³/stroke | 0.021 | 0.031 | 0.041 | ||
| Air consumption (normal liter) air-plus port | dm³/stroke | 0.068 | 0.129 | 0.175 | ||
| Max. pneumatic operating pressure | bar | 8 | ||||
| Release pressure min. | bar | 5.5 | ||||
| Mass | kg | 0.5 | 1 | 1.84 | 2.08 | 2.86 |
| Operating conditions | ||||||
| Size | 25 | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) | 0 °C ... +70 °C | |||||
| 1) | Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). |
| 2) | Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. |
Symbols/Circuit diagrams
Circuit type1) for standard air port
1) Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air-plus port or air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 Working connection
3 Venting
Circuit type1) for air-plus port
1) Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2- or 5/3-way directional control valve.
a) Air port*) M5 on both sides for release pressure
b) Connection*) M5 on both sides for air-plus port or air filter
*) Only one connection needed
All connections sealed upon delivery.
1 Air port
2 4 Working connections
3 5 Venting
Fields of application
- Pneumatic clamping of machine axes
- Table crossbars in the timber industry
- Positioning of lifting gear

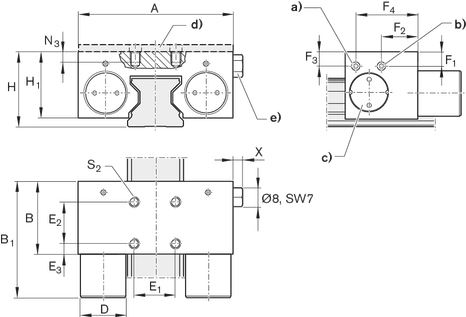

Dimensions
| a) | Air connection*) M5 on two sides for release pressure |
| b) | Connection*) M5 on two sides for Plus-Air connection or air filter |
| c) | Adjusting screw on two sides |
| d) | Spacer plate (accessory) for MKS |
| e) | Air filter: connection M5 (possible on two sides) |
| *) Only one connection needed. | |
| All connections sealed upon delivery. |
Dimensions
| Size | 25 | 35 | 45 | 55 | 65 | |
| A | mm | 75 | 100 | 120 | 128 | 138 |
| A1 | mm | 49 | 68 | 78.8 | 86.8 | 96.8 |
| B | mm | 35 | 39 | 49 | ||
| B1 | mm | 57.3 | 67.5 | 82.5 | ||
| D | mm | 22 | 28 | 30 | ||
| E1 | mm | 20 | 24 | 26 | 30 | |
| E2 | mm | 20 | 24 | 26 | 30 | |
| E3 | mm | 5 | 7.5 | 11.5 | 9.5 | |
| F1 | mm | 6.5 | 12 | 14.5 | 17 | 14.5 |
| F2 | mm | 30 | 24.5 | 29.5 | ||
| F3 | mm | 6.5 | 11 | 14.5 | 17 | 14.5 |
| F4 | mm | 17.5 | 14.5 | 19.5 | ||
| H | mm | 36 | 48 | 60 | 70 | 90 |
| H1 1) | mm | 32.5 | 44 | 52 | 57 | 73.5 |
| H2 | mm | 20 | 28 | 35.5 | 40 | 55 |
| N3 | mm | 8 | 10 | 15 | 20 | |
| S2 | M6 | M8 | M10 | |||
| X | mm | 5.5 | ||||
| 1) | for roller runner block .H. (...high...) Spacer plate necessary. |
