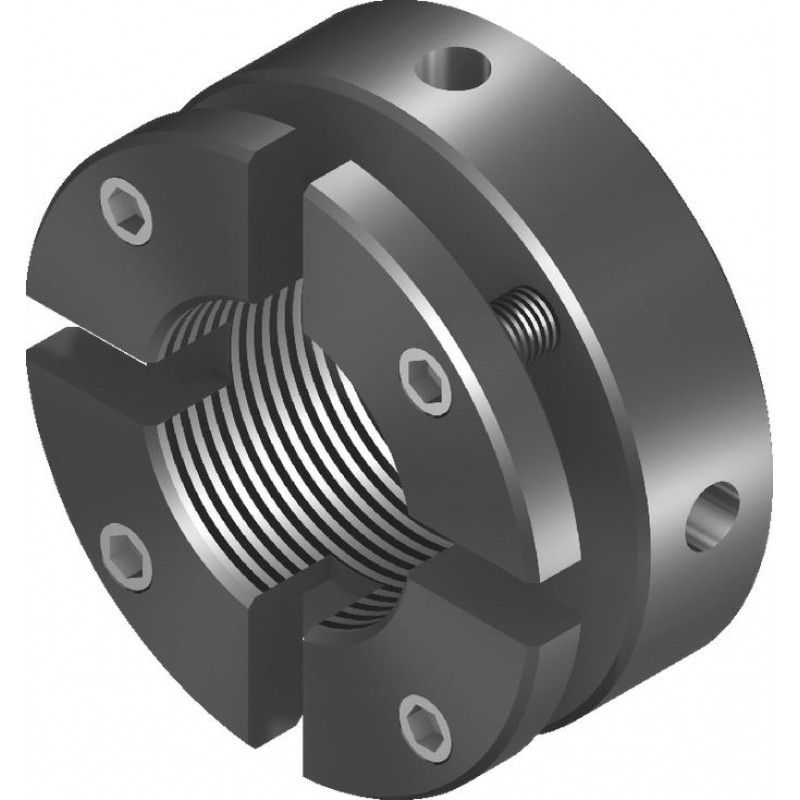

Description
- For maximum vibratory loads
- For new designs
Technical data
Technical data
| Abbreviation | MA | FLax | MAG | m |
| Nm | kN | Nm | g | |
| NMA 15x1 1) | 10 | 100 | 3 | 60 |
| NMA 17x1 1) | 15 | 120 | 70 | |
| NMA 20x1 1) | 18 | 145 | 5 | 130 |
| NMA 25x1,5 1) | 25 | 205 | 160 | |
| NMA 30x1,5 1) | 32 | 250 | 200 | |
| NMA 35x1,5 1) | 40 | 280 | 230 | |
| NMA 40x1,5 1) | 55 | 350 | 300 | |
| NMA 45x1,5 2) | 65 | 360 | 340 | |
| NMA 50x1,5 2) | 85 | 450 | 430 | |
| NMA 60x2 2) | 100 | 550 | 15 | 650 |
| NMA 70x2 2) | 130 | 650 | 790 | |
| NMA 90x2 2) | 200 | 900 | 20 | 1530 |
| 1) | With 4 segments |
| 2) | With 6 segments |
Legend
| Symbol | Description | Unit |
| MA | Tightening torque for slotted nut | Nm |
| FLax | Axial operating load for slotted nut | kN |
| MAG | Tightening torque for set screw | Nm |
| m | Mass | g |
Dimensions
Dimensions
| Abbreviation | d | D | B | c | e | f | g | m |
| mm | mm | mm | mm | mm | mm | |||
| NMA 15x1 1) | M15x1 | 30 | 18 | 5 | 24 | 4 | 5 | M5 |
| NMA 17x1 1) | M17x1 | 32 | 26 | |||||
| NMA 20x1 1) | M20x1 | 38 | 31 | 6 | M6 | |||
| NMA 25x1,5 1) | M25x1,5 | 45 | 20 | 6 | 38 | 5 | ||
| NMA 30x1,5 1) | M30x1,5 | 52 | 45 | 7 | ||||
| NMA 35x1,5 1) | M35x1,5 | 58 | 51 | |||||
| NMA 40x1,5 1) | M40x1,5 | 65 | 22 | 58 | 6 | 8 | ||
| NMA 45x1,5 2) | M45x1,5 | 70 | 63 | |||||
| NMA 50x1,5 2) | M50x1,5 | 75 | 25 | 8 | 68 | |||
| NMA 60x2 2) | M60x2,0 | 90 | 26 | 80 | M8 | |||
| NMA 70x2 2) | M70x2,0 | 100 | 28 | 9 | 90 | 8 | 10 | |
| NMA 90x2 2) | M90x2,0 | 130 | 32 | 13 | 118 | M10 |
| 1) | With 4 segments |
| 2) | With 6 segments |
Mounting
Design notes, installation
Safety Instructions
Required and supplementary documentation
For further instructions and information, please refer to the documentation for this product.
You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.
If you are unsure about using this product, please contact Bosch Rexroth.
Ordering codes
Material numbers
| Abbreviation | Part number | CAD data | Buy |
| NMA 15x1 1) | R344602004 | ||
| NMA 17x1 1) | R344601404 | ||
| NMA 20x1 1) | R344601504 | ||
| NMA 25x1,5 1) | R344601104 | ||
| NMA 30x1,5 1) | R344601604 | ||
| NMA 35x1,5 1) | R344601204 | ||
| NMA 40x1,5 1) | R344601804 | ||
| NMA 45x1,5 2) | R913034215 | ||
| NMA 50x1,5 2) | R344601904 | ||
| NMA 60x2 2) | R913034216 | ||
| NMA 70x2 2) | R913034217 | ||
| NMA 90x2 2) | R916311351 |
| 1) | With 4 segments |
| 2) | With 6 segments |
Downloads
 | Catalog screw assemblies Catalog | R999001185 | 2021-04-01 | English | PDF | 30.7MB Product Groups: Ball Screw Assemblies, Planetary Screw Assemblies Only available as PDF - Ball screw assemblies BASA/Planetary screw assemblies PLSA |
