Артикул: RX8812

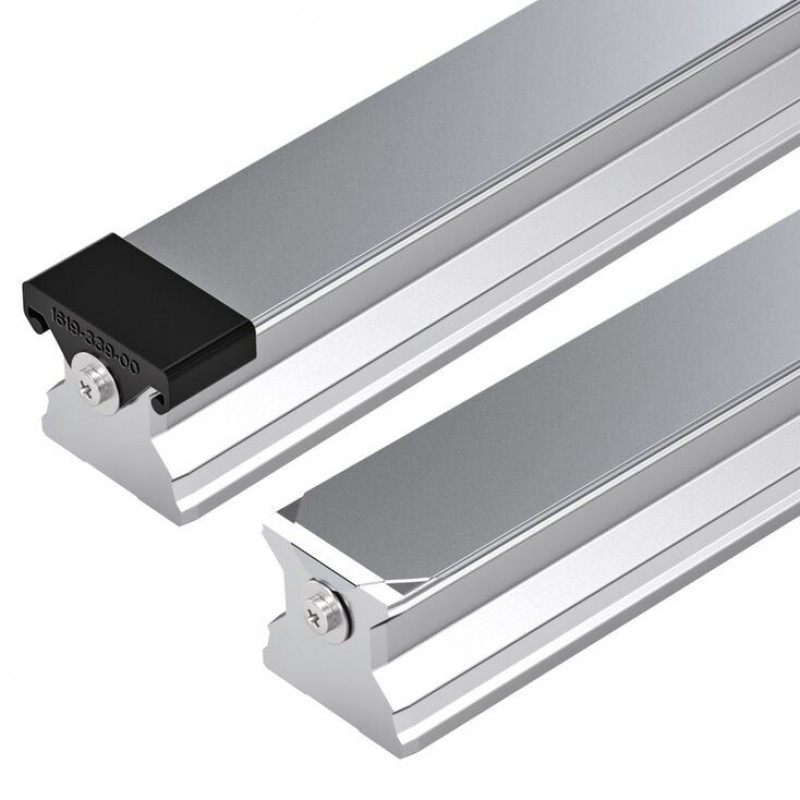

Standard roller guide rails SNO, with cover strip and protective caps R1805 .D. ..
Доступно к заказу
Цена по запросу
И выбери подходящего.
Description
- With smooth base area for mounting surfaces from cast mineral parts
- For mounting from above
- Cover strip made of corrosion-resistant spring steel as per DIN EN 10088
- With screw-down protective plastic caps (with threaded holes on end faces)
- Available in sizes 35-65 and all accuracy classes
Features
- Hardened raceways smoothened on all sides
- Top rigidity in all load directions
- Very high torque load capacity
- One cover for all bore holes saves time and costs
- Cover strip can be mounted simply and securely
- Clip on cover strip and lock
Product description
Roller Guide Rail with temperature control
Product description high-precision design
Selection of a linear guide acc. to DIN 637
Technical data
General technical data
| Size | 35 | 45 | 55 | 65 | |
| m | kg/m | 6.3 | 10.3 | 13.1 | 17.4 |
| Lmax | mm | 3996 1) | 3986 2) | 3956 3) | 3971 4) |
| Material | CS | ||||
| Operating conditions | |||||
| Size | 35 | 45 | 55 | 65 | |
| Permissible ambient temperature (min ... max) 5) | -10 °C ... +80 °C | ||||
| 1) | Deliverable in one part up to a length of 5996 mm |
| 2) | Deliverable in one part up to a length of 5981 mm |
| 3) | Deliverable in one part up to a length of 5936 mm |
| 4) | Deliverable in one part up to a length of 5921 mm |
| 5) | Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. |
Legend
| Symbol | Description | Unit |
| Lmax | Maximum length | mm |
| m | Mass per meter | kg/m |
Accuracy classes
Dimensions

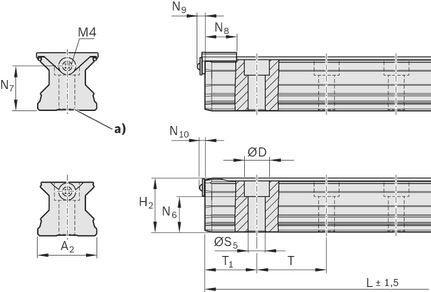

| Roller guide rail with cover strip and threaded holes on end faces. | |
| Retention with screw-down protective caps made of | |
| plastic, or alternatively with screws and washers | |
| (included). | |
| a) | For Roller Guide Rails of accuracy class H, this |
| base area may be without a groove for manufacturing reasons. |
Dimensions
| Size | 35 | 45 | 55 | 65 | |
| A2 | mm | 34 | 45 | 53 | 63 |
| D | mm | 15 | 20 | 24 | 26 |
| Dimension H2 with cover strip | mm | 31.1 1) | 39.1 1) | 47.85 1) | 58.15 1) |
| N6 | 19.4 mm ±0.5 | 22.4 mm ±0.5 | 28.7 mm ±0.5 | 36.5 mm ±0.5 | |
| N7 | mm | 22 | 30 | 40 | |
| N8 | mm | 18 | 20 | ||
| N9 | mm | 7 | |||
| N10 | mm | 4.1 | 4.35 | ||
| ØS5 | mm | 9 | 14 | 16 | 18 |
| T | mm | 40 | 52.5 | 60 | 75 |
| T1 min | mm | 16 | 18 | 20 | 21 |
| T1 s | mm | 18 2) 3) | 24.25 2) 3) | 28 2) 3) | 35.5 2) 3) |
| nB | 100 | 76 | 66 | 53 | |
| 1) | with cover strip 0.3 mm |
| 2) | Preferred dimension T1S with tolerances ± 0.75 |
| 3) | With a shortfall of T1 min a front thread is not possible. Secure the cover strip! See instruction for mounting |
Legend
| Symbol | Description | Unit |
| T | Hole spacing | mm |
| T1 min | Minimum distance | mm |
| T1 s | Preferred dimension | mm |
| nB | Maximum number of holes |
Mounting
Notes
▶ As an alternative, the cover strip can be secured with screws and washers.
▶ Protective caps with screws and washers included in scope of delivery.
▶ Observe the notes for mounting!
▶ Please request the "Mounting instructions for roller rail systems" and "Mounting instructions for cover strip".
▶ Roller guide rail also available in composite.
General mounting instructions
Certification
load errorSafety Instructions
load errorDownloads
 | Profiled rail systems Manual | R320103885_EN | 2016-09-01 | English | PDF | 11.5MB Product Groups: Linear guides |
| Catalog Roller Rail Systems Catalog | R999000354 | 2021-10-01 | English | PDF | 23.5MB Product Groups: Roller Rail Systems only available as PDF file |
